SKU: HOLOGIC-QDR-N
(0)

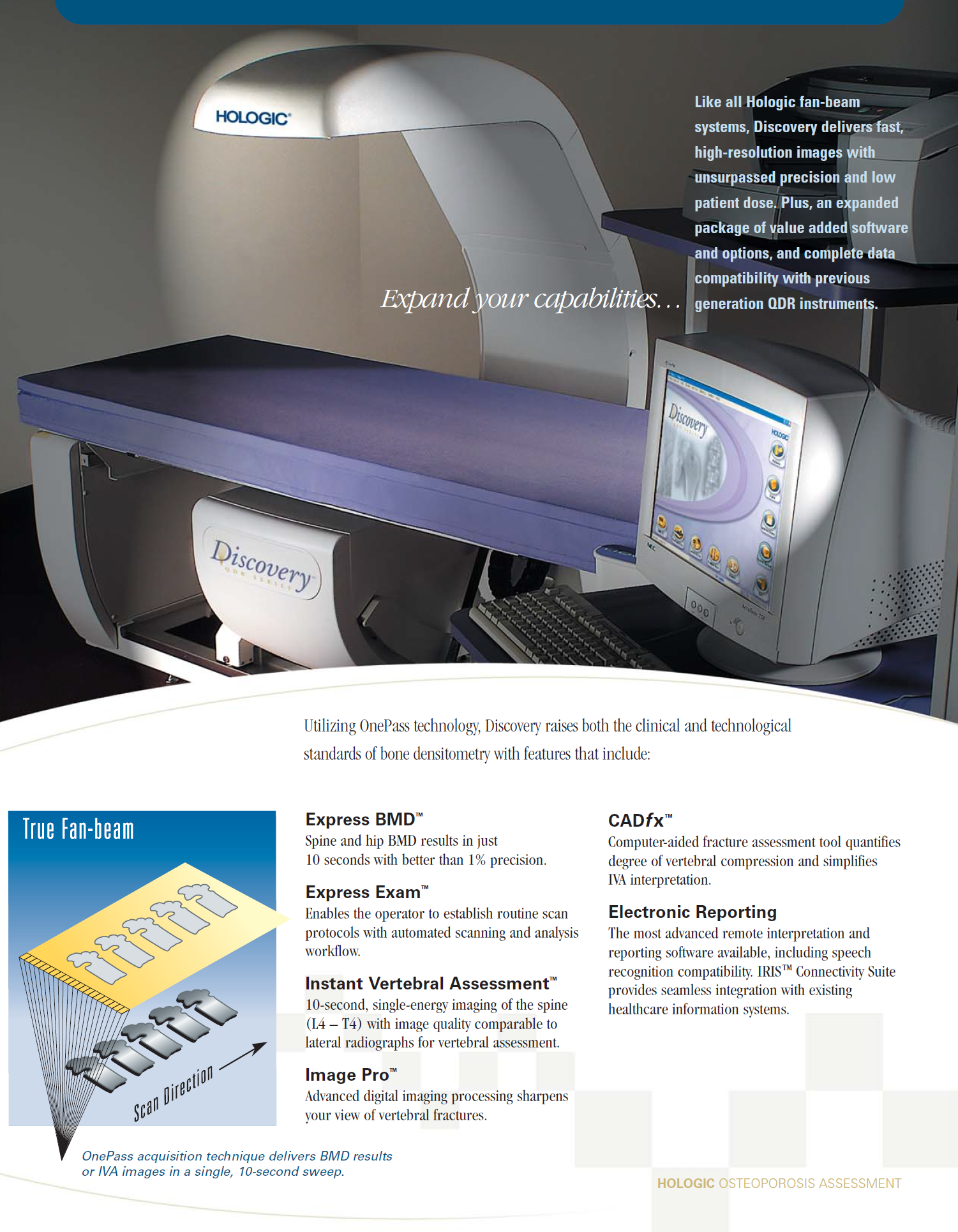

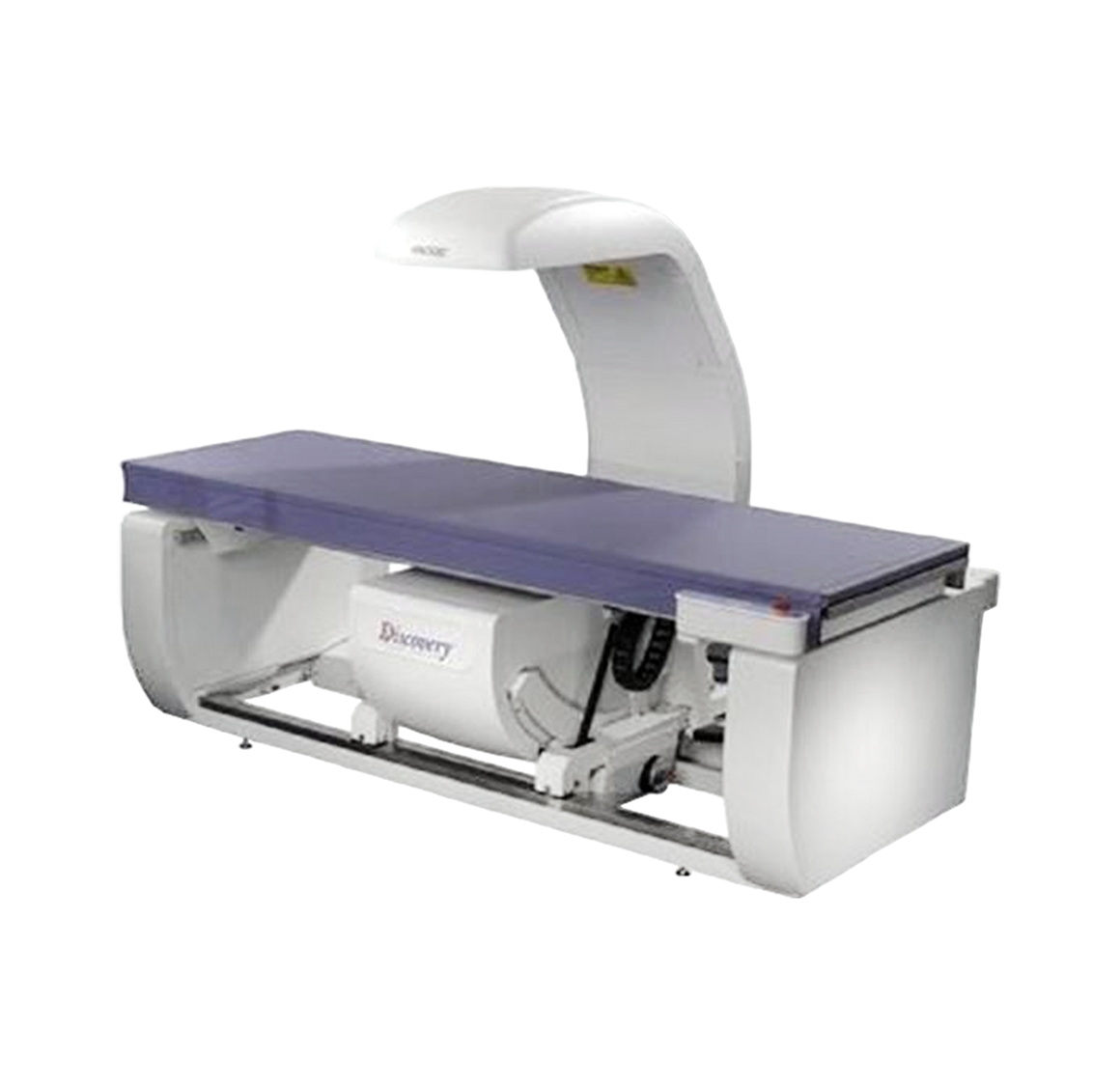

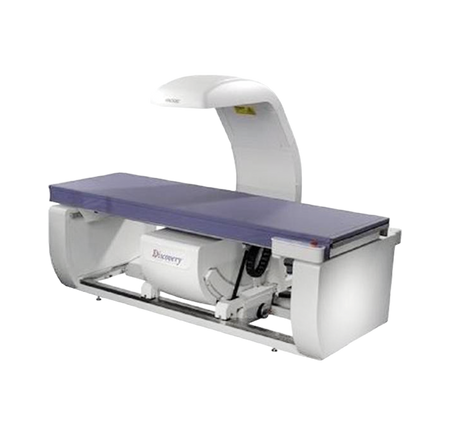

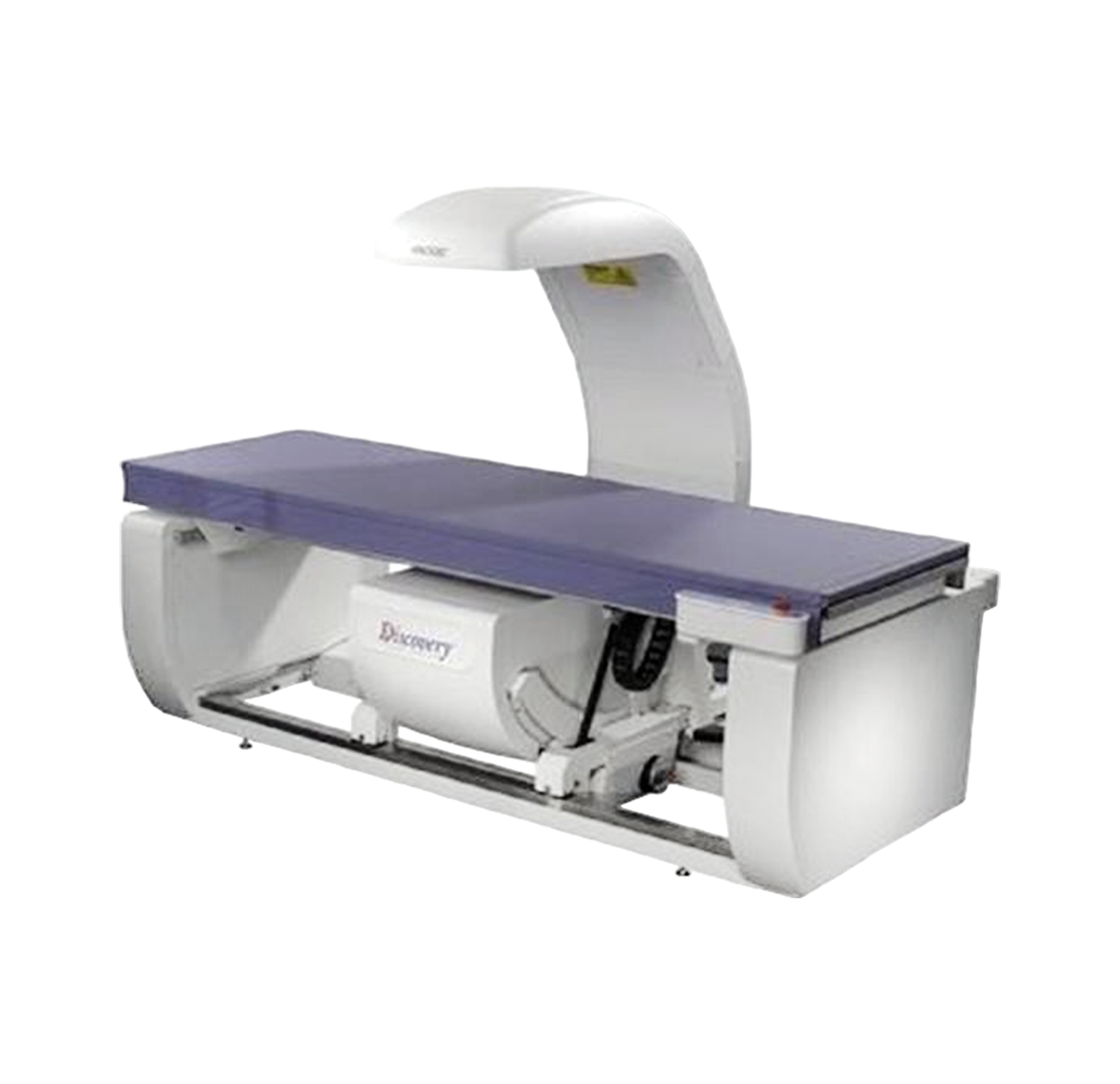

Hologic Discovery QDR Series Bone Densitometer

Hologic
Condition
Device Type: X-Ray
Purchase Type: Outright
Lead Time: 10-14 Days
Packaging: 1
Warranty: 1 Month
Request a Quote

Need Service, Repairs or Installation? ➟ Call Us @ 949-290-8999.

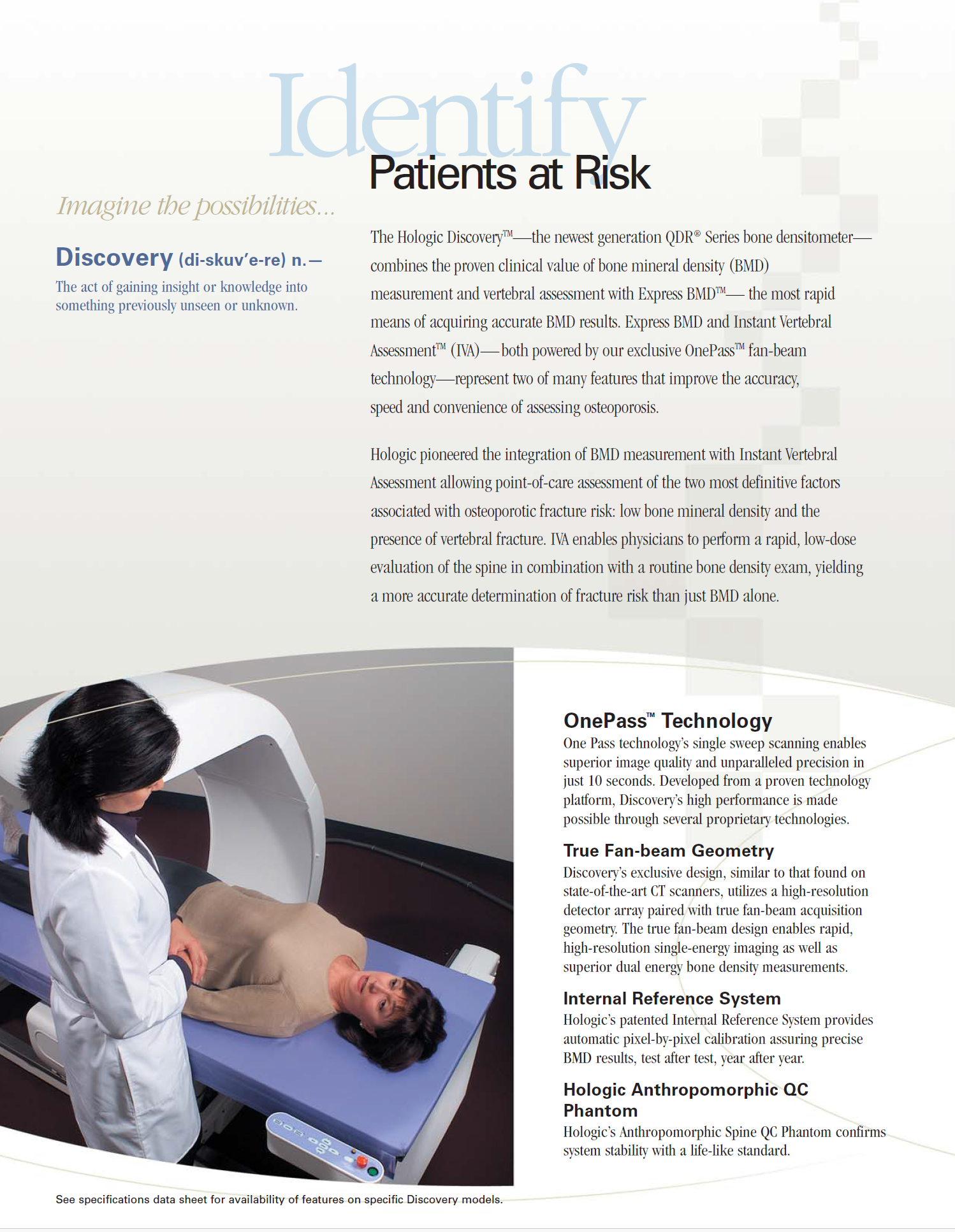

  • Hologic has long been a leader in dual X-ray absorptiometry (DXA) bone densitometry, a technology widely recognized as the gold standard for evaluating bone health and assessing osteoporosis risk. The Discovery™ system exemplifies this leadership, providing clinicians with advanced tools to detect fractures that may not be evident through physical examination alone. It delivers precise measurements of bone mineral density along with accurate T-scores, supporting informed clinical decision-making.

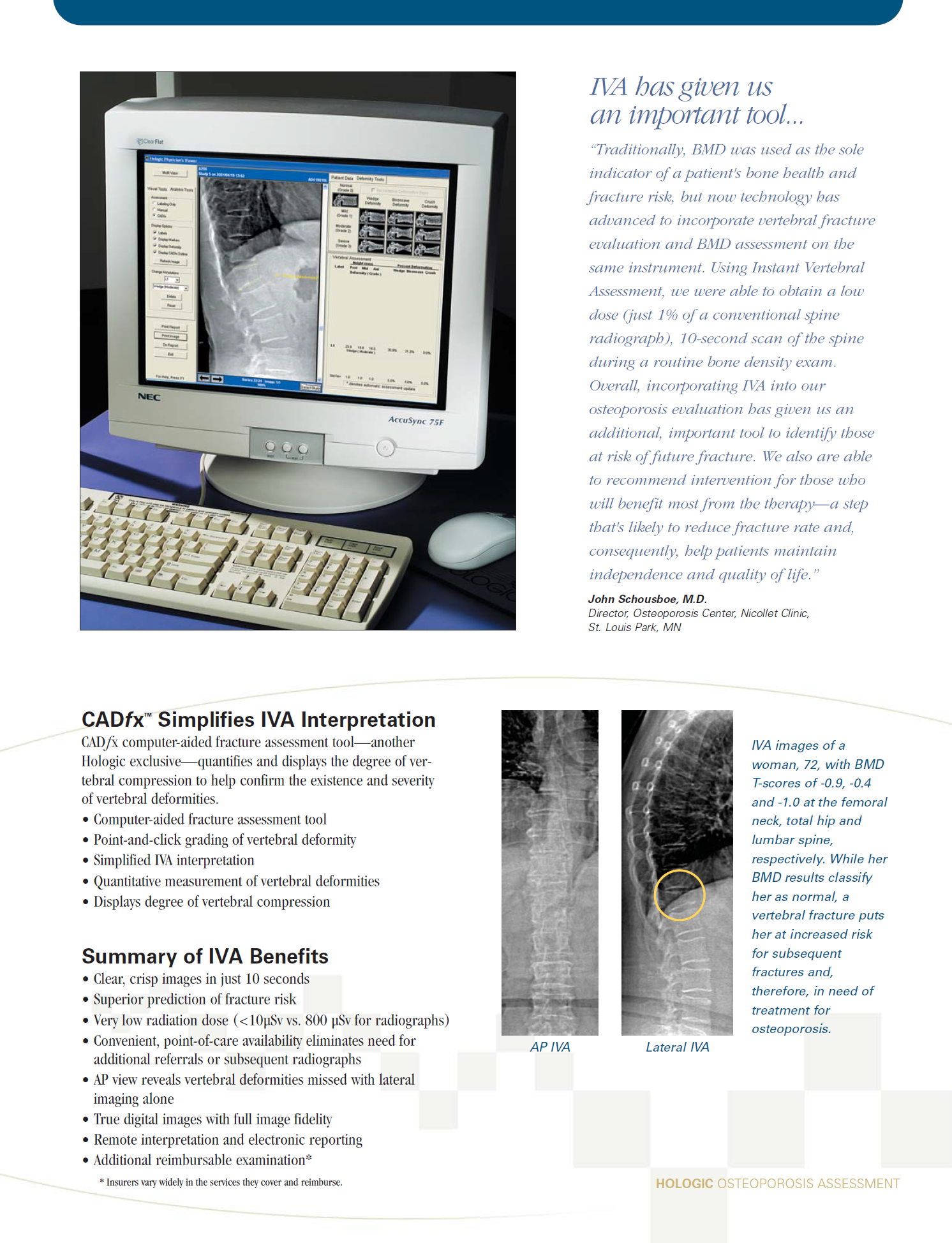

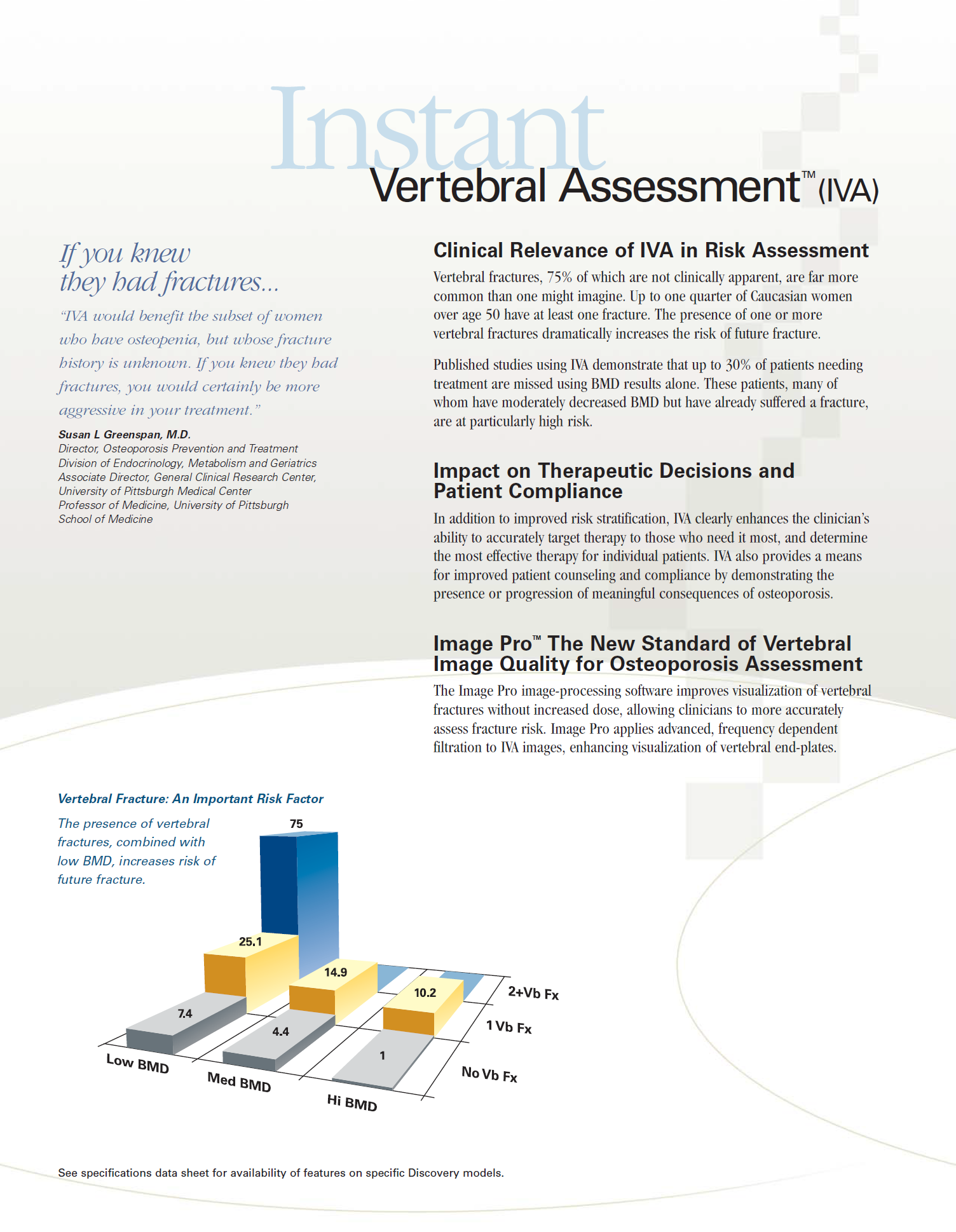

  • Beyond standard assessments, the Discovery™ system incorporates a suite of advanced applications. High Definition Instant Vertebral Assessment™ (IVA™-HD) produces high-resolution images for detailed evaluation of vertebral fractures and enables visualization of abdominal aortic calcifications (AAC). The system also integrates FRAX® fracture risk assessment and Advanced Body Composition™ analysis, including InnerCore™ visceral fat measurement. Together, these features offer a comprehensive evaluation of body composition—such as fat mass, lean mass, and visceral fat—providing valuable insights into cardiovascular risk and broader metabolic health.

FEATURES:

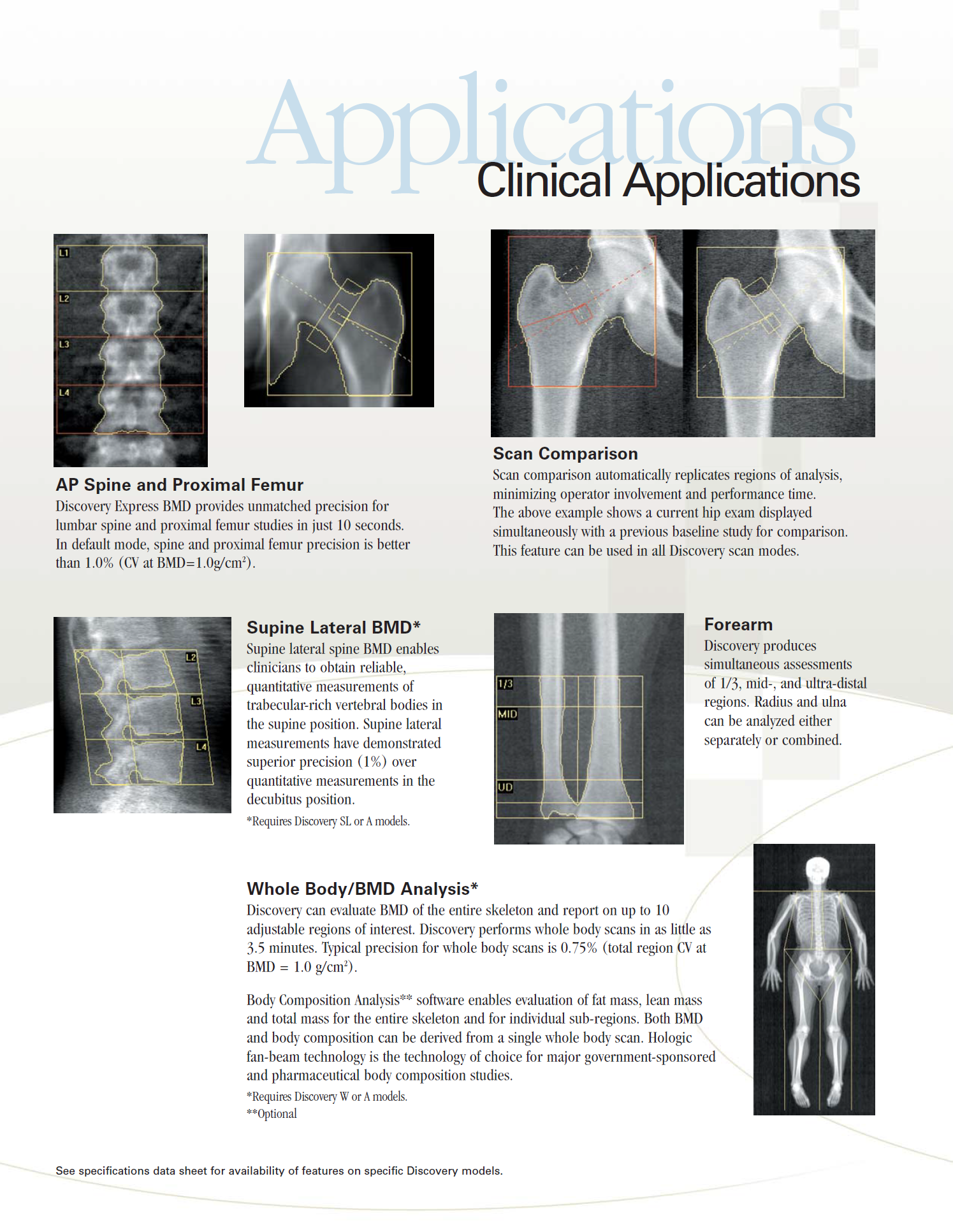

  • Forearm
  • Dual Hip
  • Proximal Femur
  • Lumbar Spine

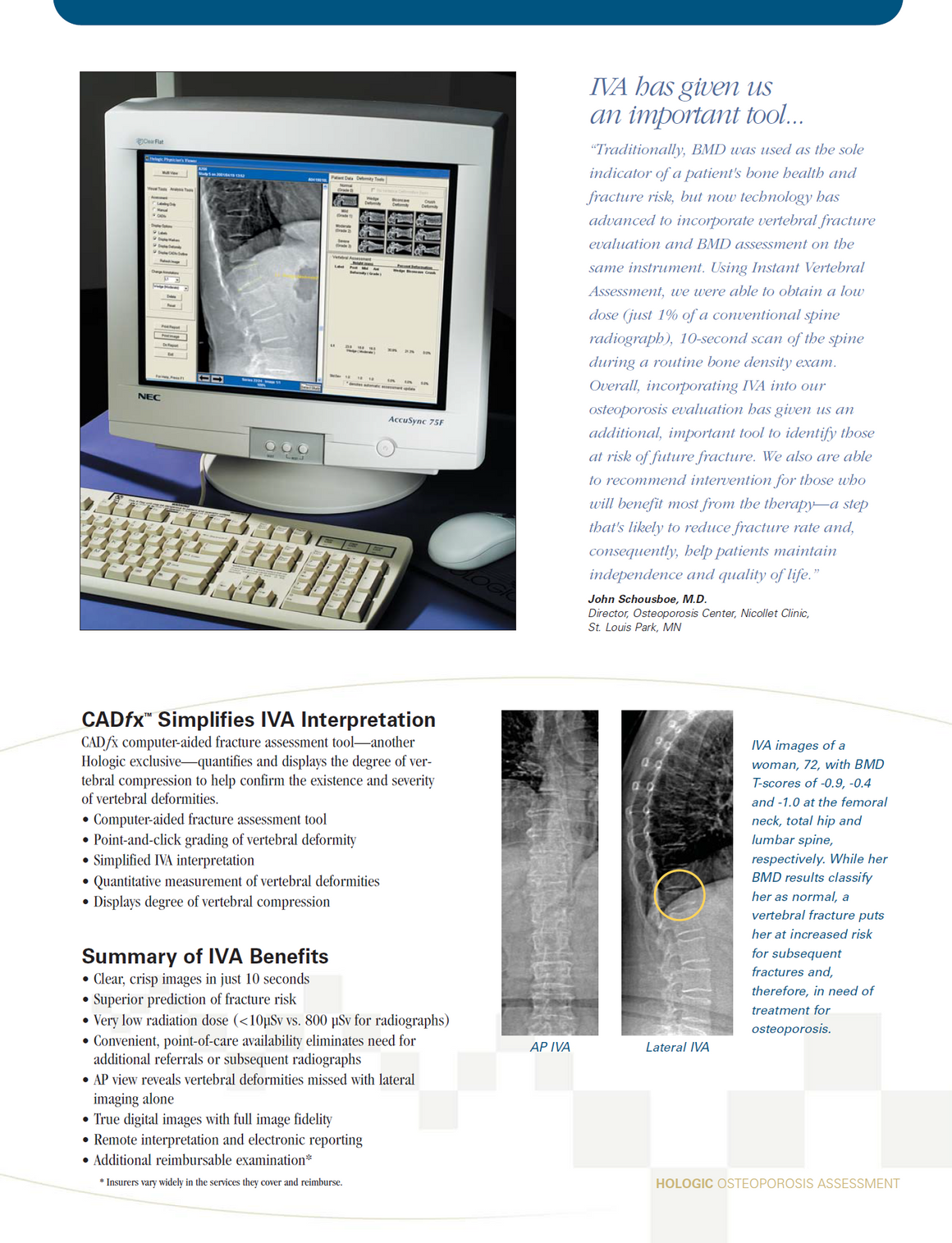

  • High Definition Instant Vertebral Assessment (IVA

SPECIFICATIONS:

  • Manufacturer: Hologic
  • Part Number: (OEM): Discovery QDR
  • Category: Bone Densitometers
  • Accessories: None
  • Condition: Refurbished
  • Weight: 765 lbs.
  • Dimensions:
  • Warranty: 30 Days

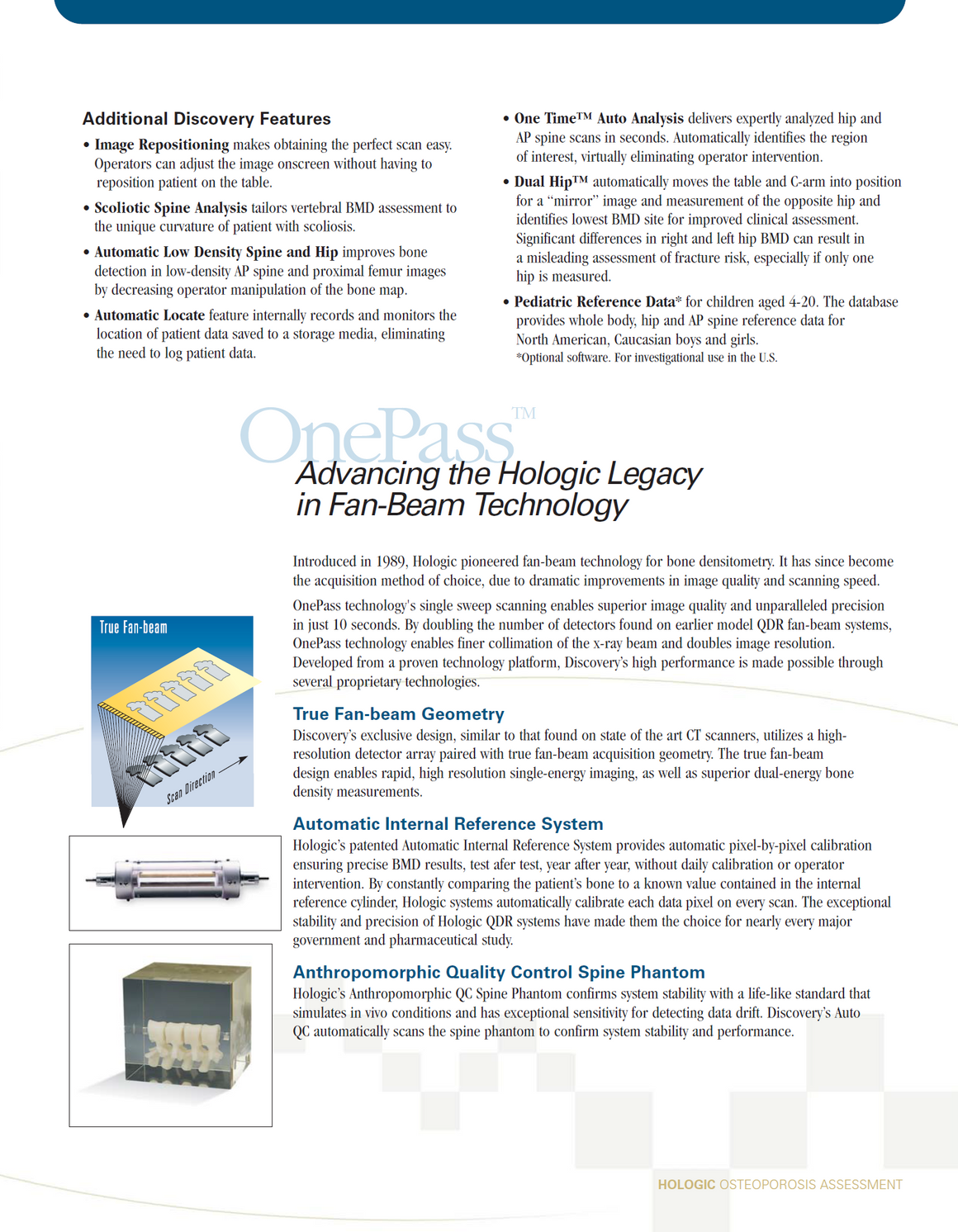

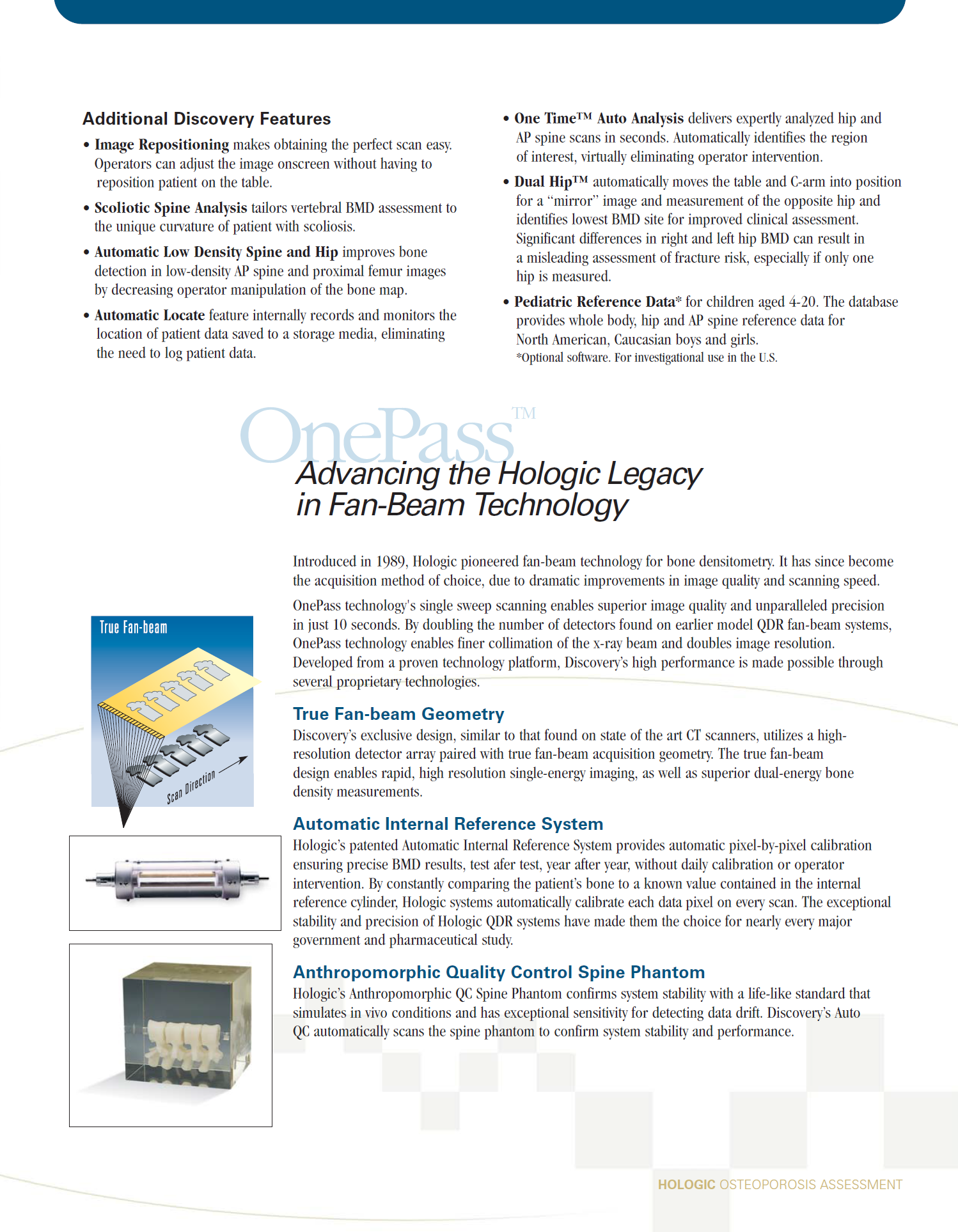

  • Scanning Method: Linear X-ray fan-beam, utilizing motorized table and C-arm
  • X-ray System: Switched-pulse dual-energy (100 kVp/140 kVp)
  • Detector System: Multi-element detector array
  • External Shielding: None required
  • BMD Precision: <1.0%
  • Calibration:
    • Automatic, continuous calibration using Hologic’s patented Automatic
    • Internal Reference System
    • Automatic quality control program
    • Operator calibration not required
  • Operating Requirements:
    • Temperature: 60° – 90°F (15°-32°C)
    • Power: 100VAC (16A)/120VAC (14A)/230VAC (8A)
    • Humidity: 20% – 80% relative humidity, noncondensing
    • Average heat load: 3,400 BTU/hr
  • Standard Hardware Configuration:
    • Computer worktable with Intel® Pentium® PC
    • 40GB (min) hard drive
    • 512MB (min) RAM
    • 64MB (min) video board
    • 17″ monitor
    • HP Color InkJet® printer
    • CD R/W drive
    • Network ready
  • Table Height: 71cm (28″)
  • Patient Weight Limit: 204 kg (450 lbs.)
