SKU: GE-LUNAR-IDXA-ADV-N
(0)

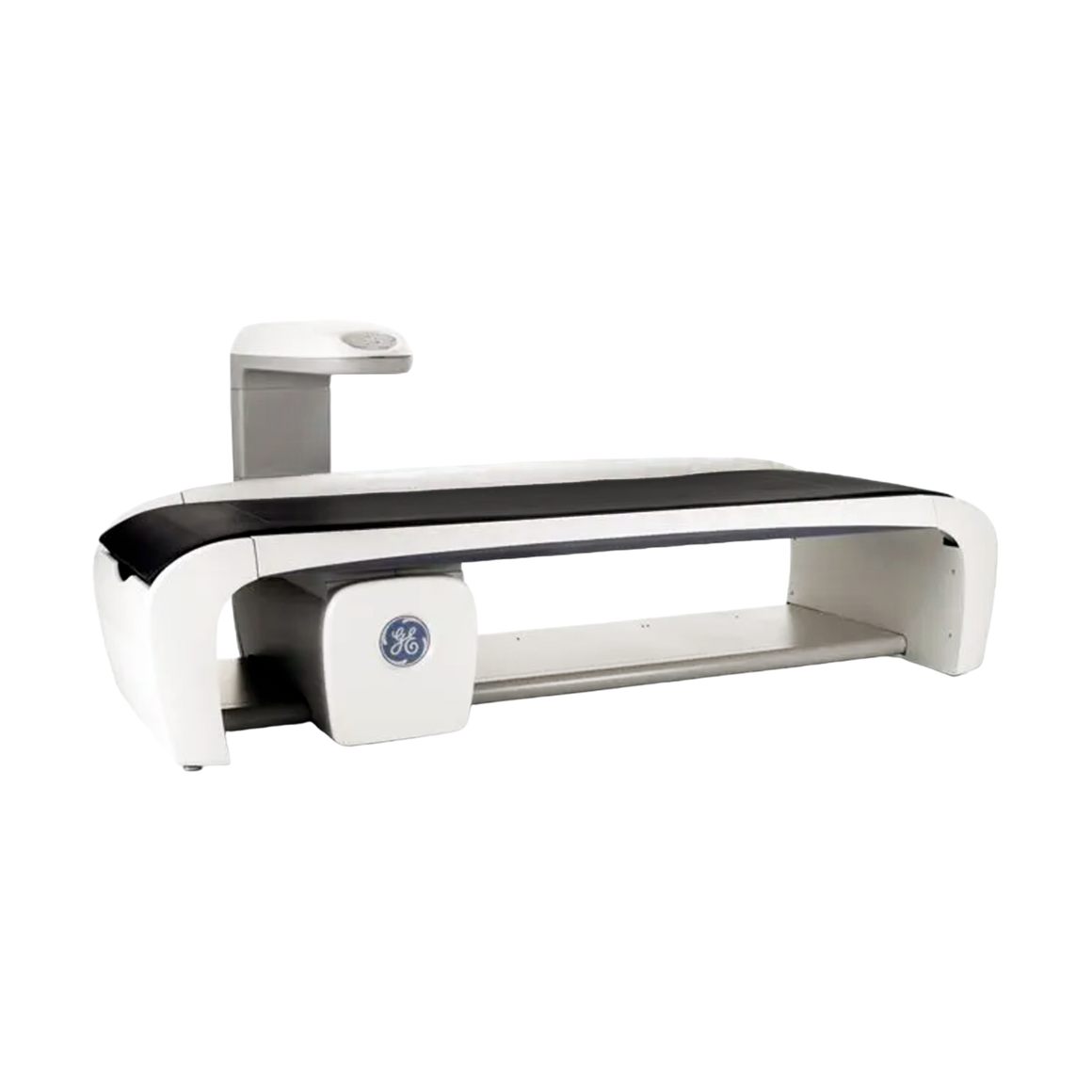

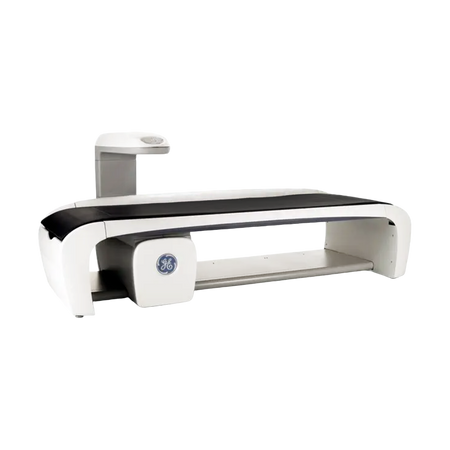

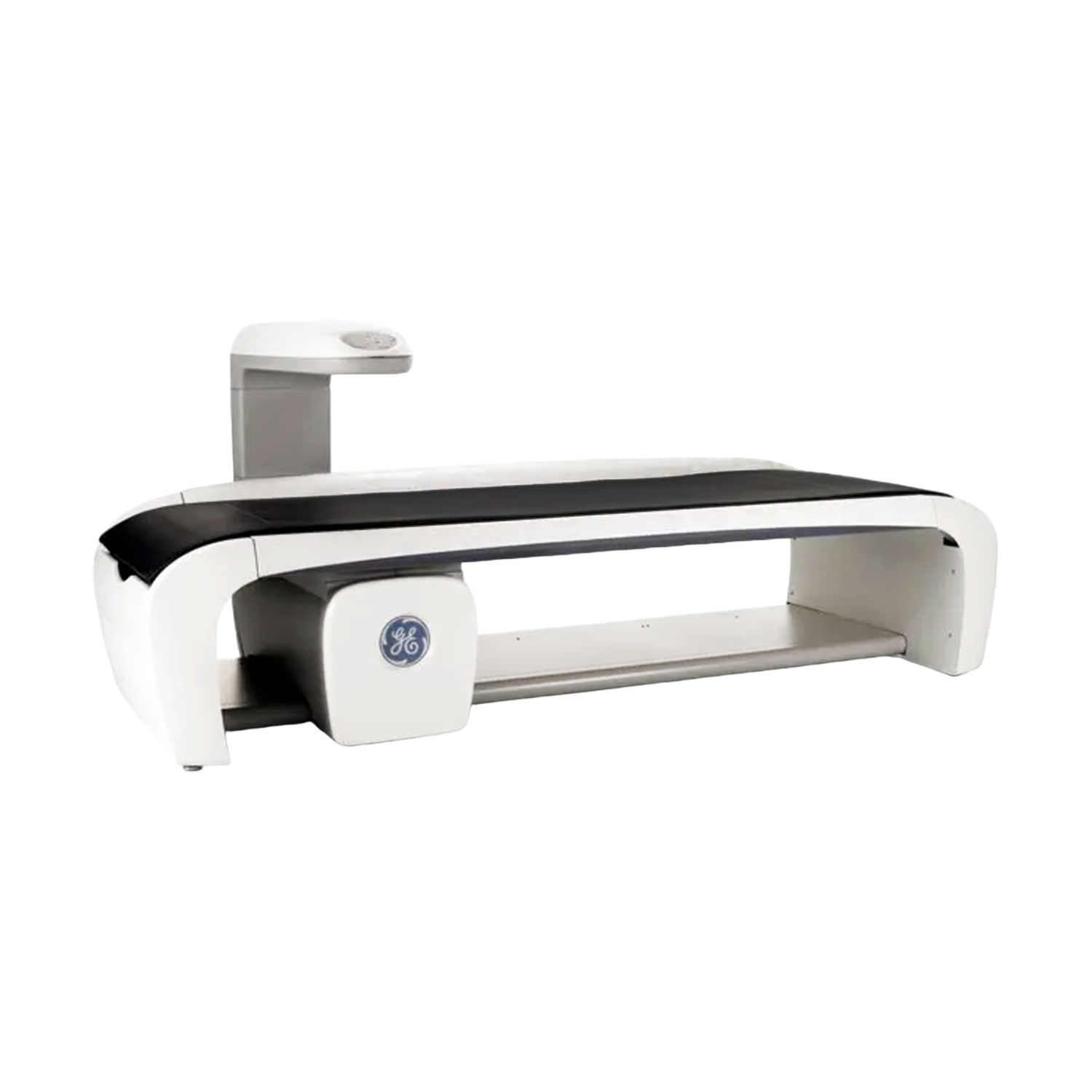

GE Lunar iDXA Advance Bone Densitometer

GE
Condition
Device Type: X-Ray
Purchase Type: Outright
Lead Time: 10-14 Days
Packaging: 1
Warranty: 1 Month
Request a Quote

Need Service, Repairs or Installation? ➟ Call Us @ 949-290-8999.

  • The GE Lunar iDXA Advance is GE Healthcare's advanced DXA (Dual-Energy X-ray Absorptiometry) system for bone mineral density (BMD) assessment and comprehensive body composition analysis. It represents the next generation beyond the Prodigy model, offering research-grade image resolution and precision for diagnosing osteoporosis and assessing metabolic health.

FEATURES:

  • Direct-Digital HD Detector    64-detector staggered array provides significantly higher image resolution than the Prodigy's 16-detector array
  • Body Composition Software    Measures fat mass, lean mass, and fat percentage with distribution mapping using color coding
  • Digital Vertebral Assessment (DVA)    Digital subtraction removes soft tissue artifacts; captures single and dual-energy images in one acquisition
  • ScanCheck    Automatically alerts technicians of improper positioning, unusual anatomy, high-density areas, and artifacts
  • Morphometry Wizard    Automatically labels vertebral deformations
  • Clearview Filter    Reduces soft tissue noise and improves bone edge detail
  • Composer Physician Report

CLINCIAL APPLICATIONS:

  • AP spine, femur, DualFemur, forearm, hand, orthopedic hip
  • Total body BMD and regional tissue quantitation
  • Pediatric spine/femur/total body with gender-specific reference populations
  • Advanced Hip Assessment (AHA), FRAX® fracture risk assessment
  • Spine geometry and small animal total body scans

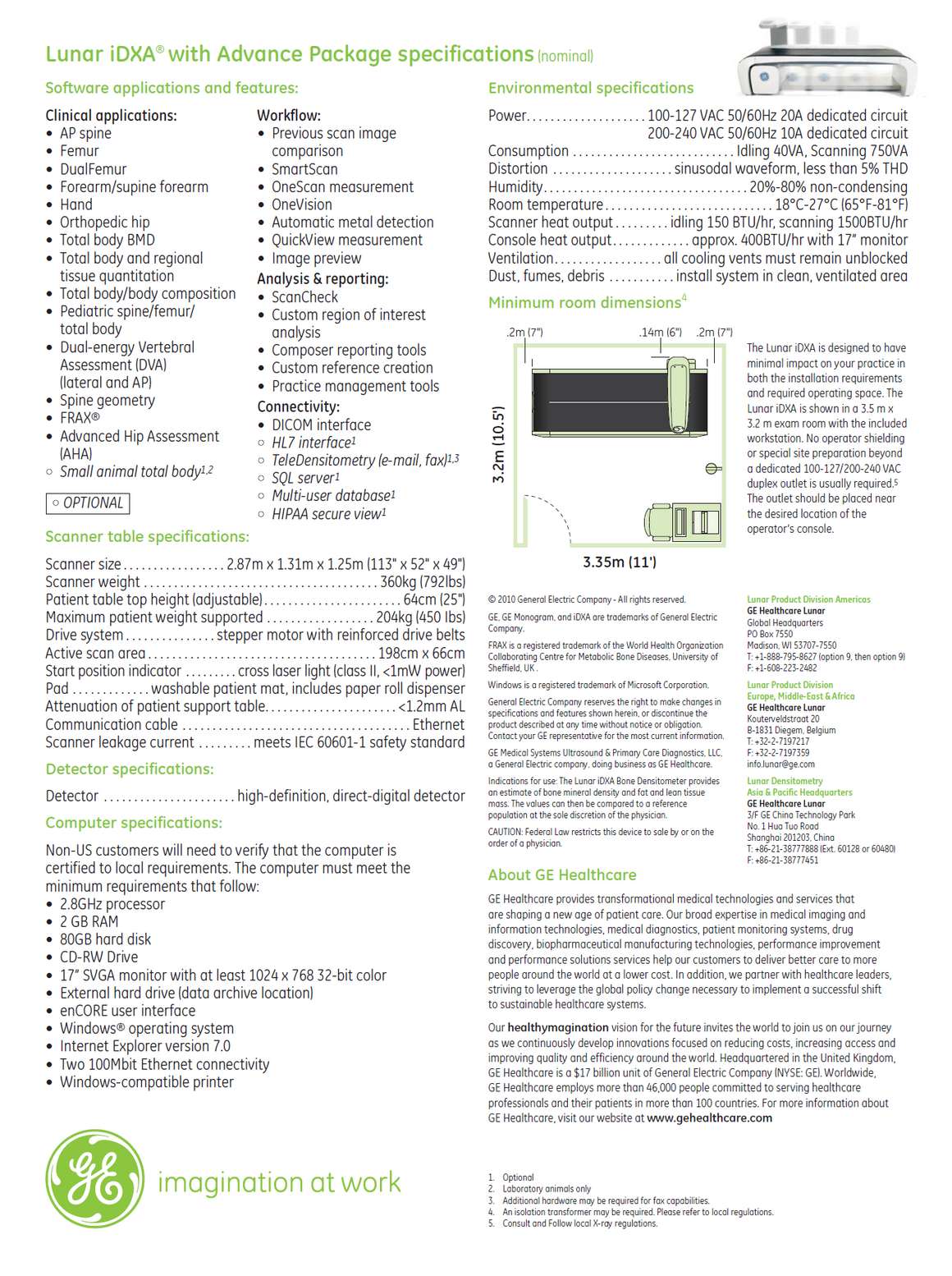

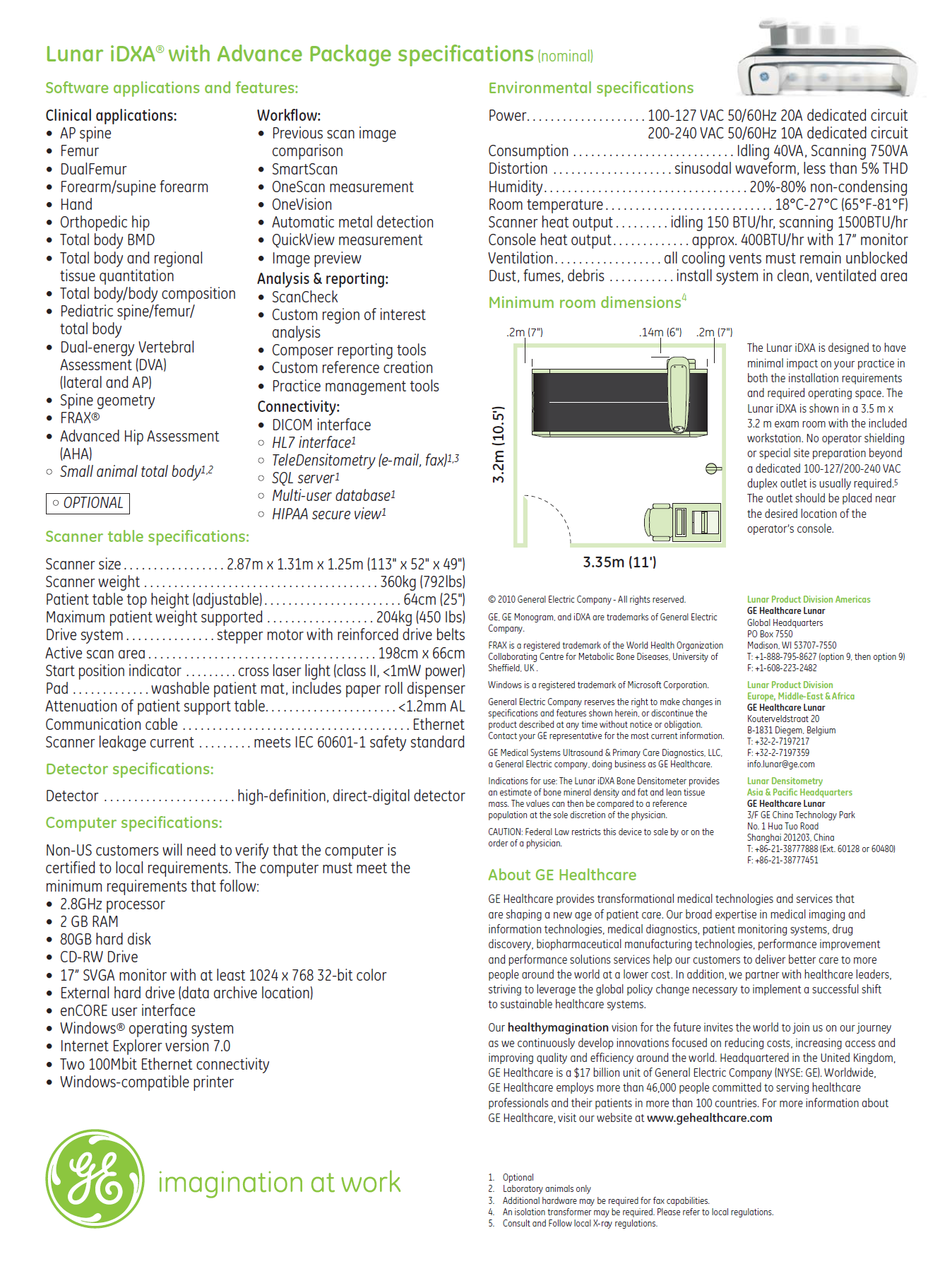

SPECIFICATIONS:

  • Manufacturer: GE
  • Part Number: (OEM): Lunar iDXA Advance
  • Category: Bone Densitometers
  • Accessories: None
  • Condition: Refurbished
  • Warranty: 30 Days

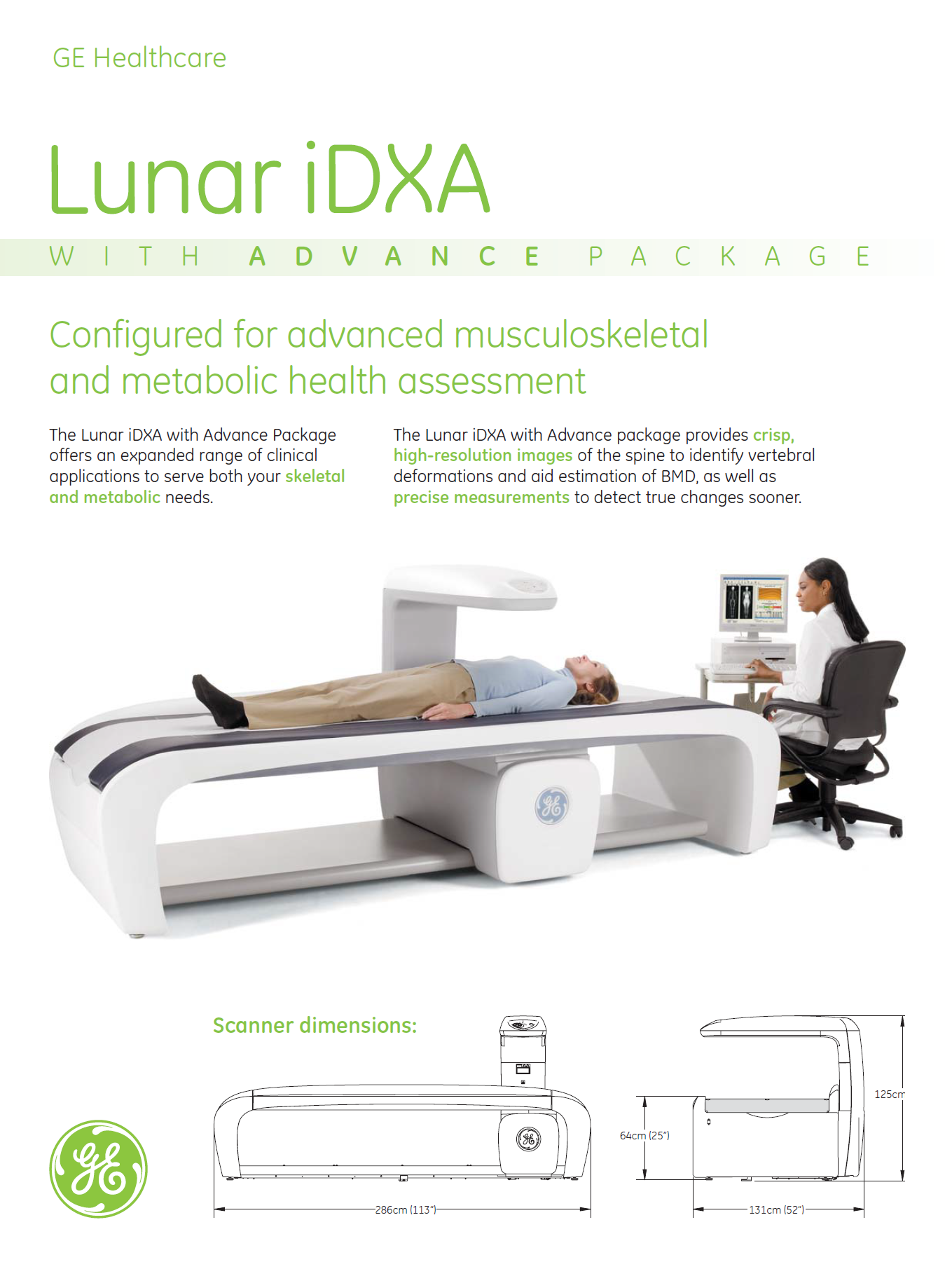

  • Scanner Size    2.87m × 1.31m × 1.25m (113" × 52" × 49")
  • Scanner Weight    360 kg (792 lbs)
  • Patient Table Height    64 cm (25") – adjustable
  • Maximum Patient Weight    204 kg (450 lbs)
  • Active Scan Area    198 cm × 66 cm
  • Drive System    Stepper motor with reinforced drive belts
  • Start Position Indicator    Cross laser light (Class II, <1mW power)
  • Pad    Washable patient mat with paper roll dispenser
  • Table Attenuation    <1.2 mm Al
  • Communication Cable    Ethernet
  • Detector Specifications:
    • Detector Type: High-definition, direct-digital detector with 64-detector staggered array
    • Technology: CZT-HD (Cadmium Zinc Telluride) for extreme precision
    • Image Quality: Research-grade resolution
  • Computer Specifications:
    • Parameter: Minimum Requirement
    • Processor: 2.8 GHz
    • RAM: 2 GB
    • Note: Non-US customers must verify local certification
  • Environmental Specifications:
    • Power:100–127 VAC 50/60Hz, 20A dedicated circuit OR 200–240 VAC 50/60Hz, 10A dedicated circuit
    • Power Consumption: Idling: 40 VA; Scanning: 750 VA
    • Waveform Distortion: Sinusoidal, <5% THD
    • Humidity: 20%–80% non-condensing
    • Room Temperature: 18°C–27°C (65°F–81°F)
    • Scanner Heat Output: Idling: 150 BTU/hr; Scanning: 1,500–1,800 BTU/hr
    • Console Heat Output: ~400 BTU/hr (with 17" monitor)
    • Safety Standard: Meets IEC 60601-1 leakage current
  • Room Requirements:
    • Minimum Room Size: 3.35m × 3.2m (11' × 10.5')
    • Clearance: 0.2m (7") on sides, 0.14m (6") at ends
  • Workflow Enhancements:
    • SmartScan, OneScan measurement, and QuickView for faster scanning
    • Automatic metal detection and image preview
    • DICOM and HL7 interfaces for connectivity
    • Customizable, easy-to-use reporting for improved practice workflow
